Dranetz Energy Platform EP1 Power Demand & Energy Analyzer
EP1 Power Quality Analyzer Features
- Advanced Demand, Energy, Harmonics and Power Analysis - Perfect for energy reduction/savings and alternative
- High accuracy & High resolution - 0.1% V&I, 256 samples /cycles - continuous monitoring
- Easy to read colorful Demand & Energy reports
- Carbon Footprint Calculator - Evaluate environmental impact
- AC and DC monitoring applications
- Triggered event detection on all parameters. Sag/Swell RMS detection, +/- 10% of nominal

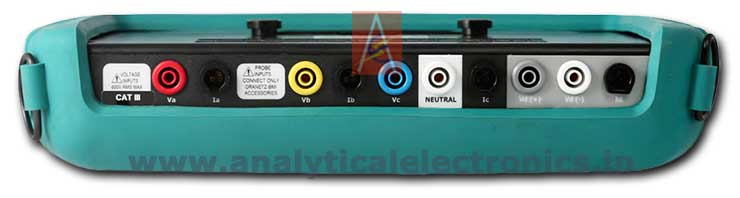

- Eight Channels, 4 voltage & 4 current. Channel D Differential
- DranView 6 software compatible - now has new Energy Audit report
Dranetz Power Analyzer EP1 Description
The Dranetz Energy Platform EP1 is an innovative and essential
Power Analyzer for any electrical energy monitoring application. Whether you want to understand your utility
costs, improve efficiency, install energy savings devices, explore alternative energy solutions or even determine
your carbon footprint, Energy Platform provides the essential monitoring tools to meet your energy monitoring
requirements. Energy Platform's 1/4 VGA color touch display, automatic setups, easy to read reports and Energy
Platform Report Writer (EPRW) software provide a simple to use, yet powerful tool for any application.
Colorful, Easy To Read Demand & Energy Reporting
Ease of use is important to every application. Even the best of instruments
fall short if the user can’t easily and efficiently view important results. Energy Platform’s user interface
displays Demand and Energy reports in an easy to understand, color coded format. All pertinent information such
as V, A, W, Demand & Energy and more is on screen with each square showing real time readings and computations.
Results are color coded to easily identify if a parameter has exceeded any triggered conditions. A green square
means the parameter is within limits. Blinking Red or Yellow means the parameter has exceeding your monitoring
limits. It’s that simple!
As the sensitivity of power electronics increases, equipment ranging
from HVAC systems, personal computers and copiers to computerized process equipment and manufacturing systems
are susceptible to harmonic pollution. In fact, harmonics can cause small, almost imperceptible variations in
performance that aggregate to affect significant long-term damage. Current harmonics generated by a source can
pollute the entire power system. The Energy Platform captures detailed harmonics, interharmonics and subharmonics
in accordance to IEC61000-4-7 to effectively troubleshoot the complex problems caused by these events.
Dranetz EPRW & DranView® Power Analyzer Software
Energy Platform Report Writer software (EPRW) is included with
every EP1. EPRW is unlicensed software that summarizes your survey, producing easy to read, user selectable
reports. Voltage, Current, Watts, VA, VAR, PF, harmonics, Demand, Energy and many other parameters can be trended
to create your own custom report. Or, just use the automatic feature and let EPRW quickly generate your report
without any setups. The Energy Audit feature summarizes your energy survey, including your basic billing parameters
such as time of use (peak, partial-peak, off-peak times), peak demand, energy cost and Carbon Footprint calculations.
Reports are created in a RTF format so you can easily edit your report in any text editor. A data export feature
is available to bring your data to other software applications. Data can be exported to a .csv file format for
use in Microsoft excel or other compatible software packages.
For more advanced applications, EP1 is fully compatible with our award
winning DranView software (optional) that adds advanced analysis in an easy to use software package.
DranView is a powerful tool that makes data analysis easy. DranView has advanced features such as bookmarks,
zooming, rubber banding, balloon annotations, math functions and can even include your company’s logo. The built
in Rescue Kit can help undo monitoring mistakes such as reversed CTs, wrong scale factors, wrong instrument
time and more. DranView’s report writer has a variety of report functions available to meet any application
and now includes the Energy Audit report also available in EPRW. DranView is used world-wide by thousands of
power professionals to analyze data taken on Dranetz products.
For Pricing Information
Test Equipment |
(All trademarks acknowledged) E. & O. E.
Dranetz EP1 Ordering Information
- EP10-4 : 4 x TR2510 Clamp-on CT
- EP500-4 : 4 x TR2500 Clamp-on CT
- EP550-4 : 4 x TR2550 Clamp-on CT
- EPFLEX3 : 4 x 3000A Flex CT
(1 x DranFlexXL3003XL + 1 x DranFlex3000XL)
(All Package Includes : EP1, Soft Case, Voltage Cable Set, EPRW Software,
Power Supply, CF Card)
Clamp-on Pobes :
- TR2501 : 100mA - 1.2A
- TR2510A : 1A - 10A
- TR2550A : 1A -100A
- TR2500A : 10A - 500A
Flexible Current Probes :
- DRANFLEX3000XL/24/36/48 : 30/300/3000A
(Available in 24", 36", 48")
- DRANFLEX6000XL/24/36/48 : 60/600/6000A
(Available in 24", 36", 48")
- DRANFLEX3003XL/24 : 30/300/3000A, 24: 3 phase (3 Flex CT’s)
