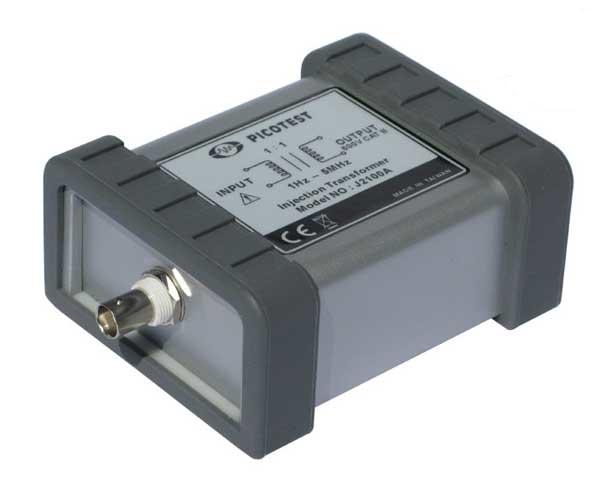

Picotest J2100A Features

• 1Hz supports PFC regulators
• 5MHz high enough for most power supplies and regulators
• 22 Octave range
• Low distortion for superior precision
• 5 Ohm termination for minimum impact to loop
• Includes attenuation to assure small signal measurement

Introduction

The injection transformer is presently the prevalent method for connecting the network analyzer to the circuit being tested, and is primarily used for control loop stability measurements. The goal of the transformer is to inject a signal into the control loop being measured, without impacting the performance of the loop. In order to accomplish this to a reasonable degree, The transformer is isolated and therefore is capable of floating on a high voltage, such as a Power Factor Corrector (PFC), which is often close to 400VDC. Measuring voltages that exceed the voltage rating of the Bode-100 inputs require attenuation probes.

Specification
