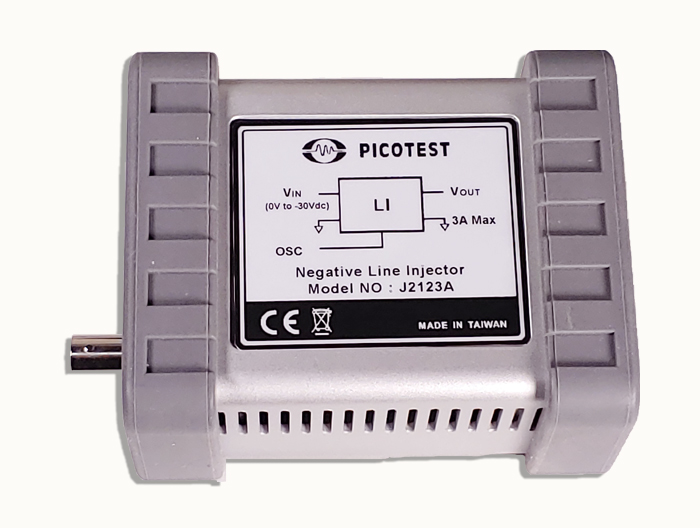

Picotest J2123A Features

• Negative voltage line injector
• Modulate a DC Power Source Voltage
• Combines modulation signal with bus voltage
• 10Hz-50MHz usable bandwidth
• Low Impedance, Low Noise, and Low Voltage-Compliance
• 3 Amps maximum current
• -30VDC max input
• Easily measure input filters and PSRR

Introduction

The J2123A negative voltage line injector, like the J2120A positive voltage line injector, is used to superimpose an AC modulation signal on a DC source voltage for Power Supply Rejection Ratio (PSRR), Power Supply Modulation Ratio (PSMR), and Audio Amplifier Common-Mode Rejection Ratio (CMRR) testing. These applications require very low output noise, as well as a low output impedance over a wide bandwidth.

Specification
