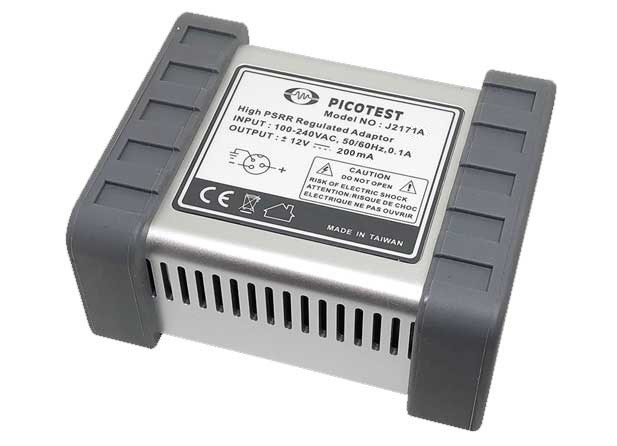

Picotest J2171A High PSRR Regulated Adapter

Picotest J2171A Features

For use with the J2110A, J2111A, J2112A, J2113A, and other Picotest Injectors
Universal AC input voltage 100V-240V for worldwide performance
+/-12V 200mA output
Ultra high PSRR
Very low noise
Very low output impedance

Introduction

The J2171A power adapter is specially designed for use with the Picotest J2110A, J2111A, J2112A, J2113A and other signal injector products. The supply combines a universal worldwide input (100 to 240 VAC ) with two high performance linear regulators.

Specification

Characteristic	Typical
Absolute Maximum Input Voltage	240V, 60Hz
Output Voltage	+/-12V
Maximum Icc	200mA
Temperature Range	0-50C

Feel free to contact us for any queries you may have.
