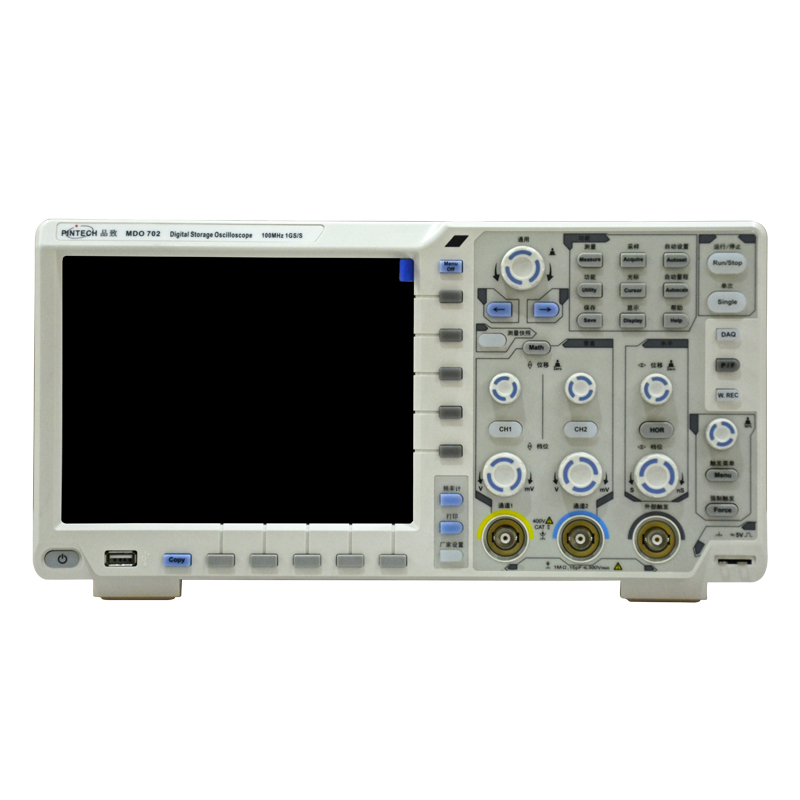

Pintech MDO 702 dual channel 100MHz bench oscilloscope
|
Product Introduction
Product Name : MDO 702 dual channel 100MHz bench oscilloscope
Short Description : + ultra-thin body-design, less space accommodation
multi-interface integration - USB host,
USB device, USB port for PictBridge, LAN, AUX, and more
+ VGA port - better solution for video expansion, and teaching demonstration
+ 8 inch 800 x 600 high resolution LCD
+ optional multi-point touch screen,
more user-friendly operation experience
+ functions as data logger, and multimeter with data logging function
|
Pintech MDO 702 Specification
Model | MDO 702 | Bandwidth | 100MHz | Sample Rate | 1GS/s | Vertical Resolution(A/D) | 8 bits | Record length | 40M | Waveform refresh rate | 75,000 wfms/s | Horizontal Scale (s/div) | 2ns/div - 1000s/div, step by 1 - 2 - 5 | Rise time(BNC typical) | =3.5ns | Channel | 2 + 1 (external) | Display | 8" color LCD, 800 x 600 pixels TFT LCD | Input impedance | 1MO±2%,and 15pF±5pF parallel | Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | Max. Input voltage | 1MO = 300Vrms; 50O = 5Vrms | DC gain accuracy | ±3% | DC accuracy (average) | average=16:±(3% +0.05div) for ?V | Probe attenuation factor | 0.001X - 1000X, step by 1 - 2 - 5 | LF response(AC,-3Db) | =10Hz(BNC) | Sample rate/relay time accuracy | ±1ppm | Interpolation | (sinx) / x,x | Interval(?T) accuracy(full bandwidth) | Single : ±(1 sample interval time+1ppm x reading+0.6ns); average>16:±(1sample interval time+1ppm x reading+0.4ns) | Input coupling | DC, AC, GND | Vertical sensitivity | 1mV/div - 10V/div (at input) | Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | Bus Decoding(optional) | I2C, SPI, RS232, CAN | Trigger mode | auto, normal, single | Vertical range | ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div) | Line / field frequency(Video) | NTSC,PAL and SECAM standard | Cursor measurement | Voltage difference between cursor(?V),time difference between cursor(?T),Voltage difference between cursor(?V)and time difference between cursor(?T),auto cursor | Auto measurement | Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A?B?,delay A?B?,+Pulse count,rise edge count,fall edge count | Waveform Math | +, -, ×, ÷, FFT | Waveform storage | 100 waveforms | Lissajous figure | bandwidth | Full bandwidth | Phase difference | ±3 degrees | Connector | USB host, USB device,USB port for Pict Bridge,trig out(P/F), LAN, VGA(optional) | Frequency counter | available | Power supply | 100V - 240V AC, 50/60Hz, CAT II<15W | Fuse | 2A, T class, 250V | Battery (optional) | 3.7V, 13200mA | Dimension | 340mm(L)x177mm(H)x90mm(W) | Device Weight | 2.6kg |
|
|
