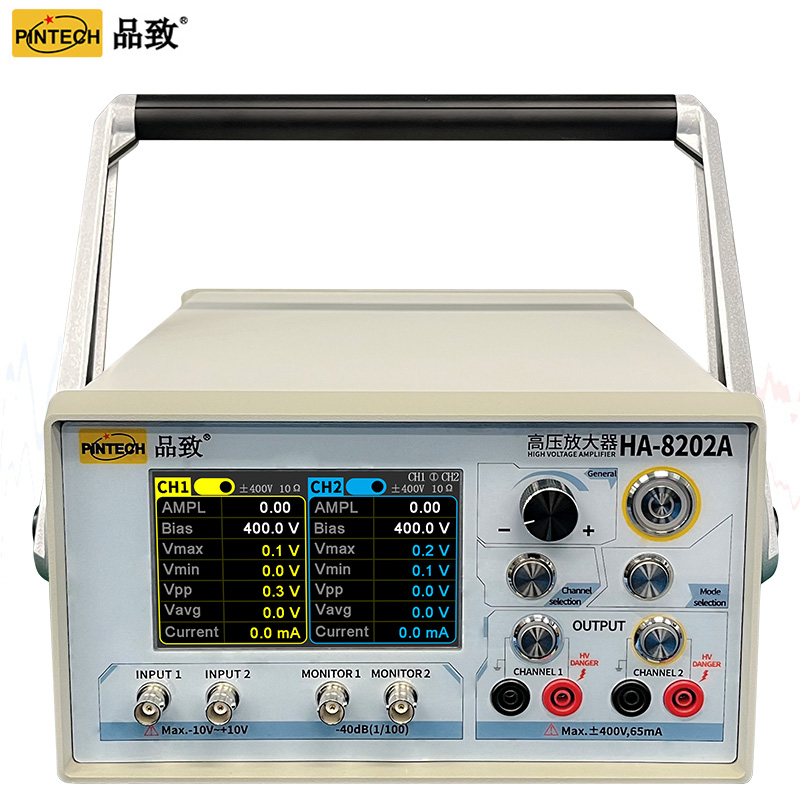

Pintech HA-8202A (400kHz,800V) Digital display high voltage amplifier

Pintech HA-8202A

Pintech HA-8202A Specification

Model	HA-8202A
Channel	2
	Each channel	Differential
Output voltage（DC Max）	400V DC	800V DC
Output voltage（AC Max）	800Vp-p	1600Vp-p
Output current（DC Max）	65mA DC	65mA DC
Output current（AC Max）	130mAp-p	130mAp-p
Output Power（Max）	26VA	52VA
Bandwidth	DC-300kHz（-3dB）	DC-300kHz（-3dB）
Slew Rate	500V/us	1000V/us
Output Impedance	5Ω	10Ω
Output Protect Resistor	5kΩ/35watt（non-inductance resistor）	10kΩ/70watt（non-inductance resistor）

Feel free to contact us for any queries you may have.
