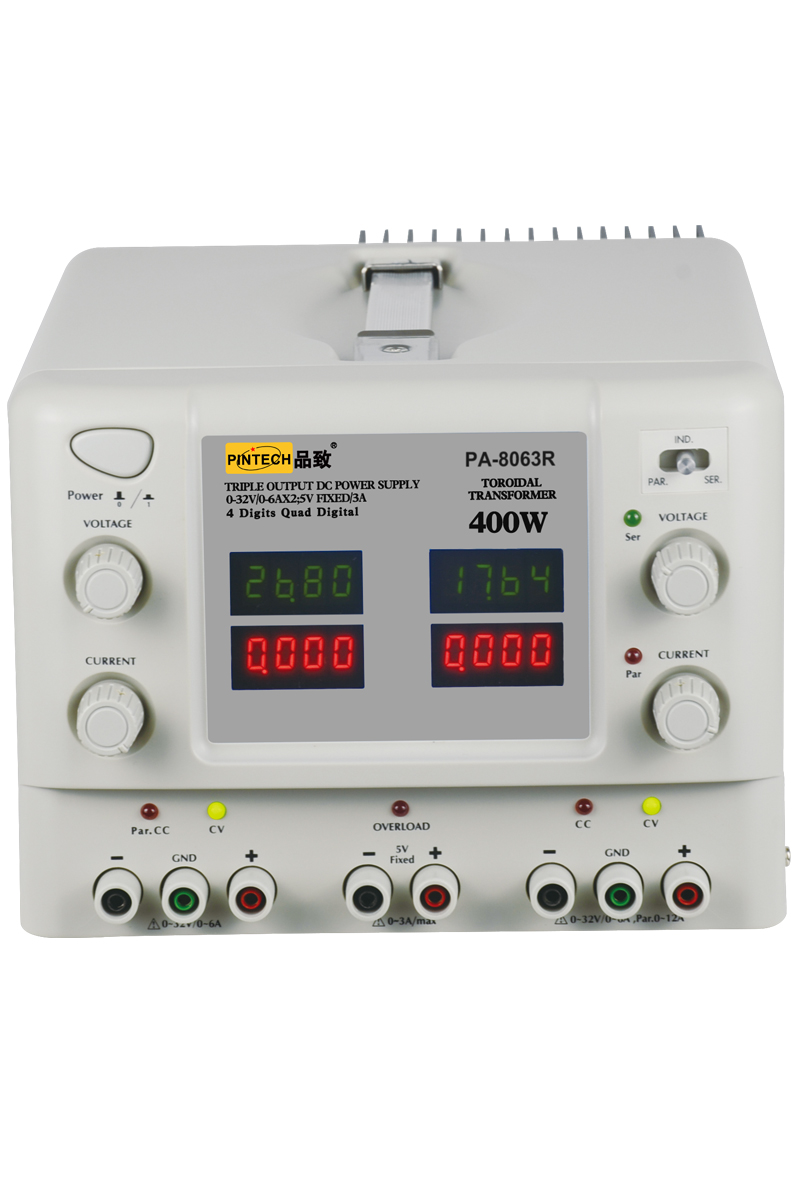

Model | PA-8063R |
Power Transformer | Toroidal Transformer |
Max. Continual Output Power | 400VA |
Max. Raised Temperature | < 45°C |
Independent Output | 0~32V/0~6A x 2, 5V Fixed / 0~3A; Triple output |
Constant Voltage Characteristic |
Regulation | Line <0.05%+3mV, Load <0.05%+5mv |
Ripple & Noise | < 0.4mVrms |
Temperature coefficient | < 300PPM/°C |
Output switch | Build-in(slave & master) |
Constant Current Characteristic |
Regulation | Line <0.2%+2mA, Load <0.2%+3mA |
Ripple & Noise | < 2.5mArms |
Current limit switch | Build-in c - c Current limit switch(slave & master) |
5V Fixed Output |
Regulation | Line < 5mV,Load <10mV |
Ripple & Noise | < 1.5mVrms |
Voltage Accuracy | 5V ± 0.25V |
Max. Output Current | 3A |
Tracking Operation |
Parallel Regulation | Line < 0.01%+3mV, Load < 0.01%+5mV |
Series+and-Supply Regulation | Line < 0.01%+3mV, Load < 0.01%+5mV |
Slave tracking error <0.5%+digital of the master 2 |
Series Single Supply Regulation | Line <0.01%+5mA, Load <300mV |
Display |
Voltage | 4 Digits 0.36" Green LED |
Current | 4 Digits 0.36" Red LED |
Accuracy | 0.05% + 3 Digits |
General |
Power source | ACV 115/230 ± 10%, 50/60Hz |
Dimension ( W x H x D): | 230 x 170 x 310 mm |
Weight | 9.5kg |
