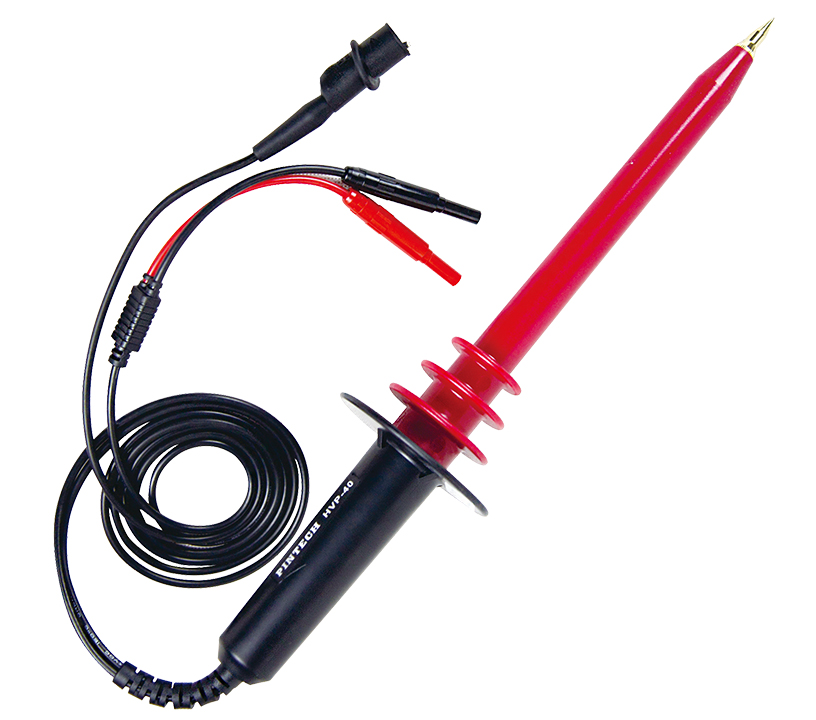

Pintech HVP-40 Specification
Input Resistance | 1000MO; | Attenuation Ratio | 1000:1 | Max. Operation Voltage | DC 0~ ± 40KV | AC 1~ 28KV(50/60Hz) | Safety APPL | EN61010 , UL3111-1 , TUV-GS | IEC1010 CAT? Pollution 2 | Polarity | Positive/negative are measurable | txt" - | DC:± 1% to 20 KV , ± 2% to 40 KV | AC:- 5% to - 10% at 50 ~ 60Hz | Temperature Coefficient | ? 200ppm /? | Maximum Loading Current | ? 40µA ( at 40KV DC ) | Maximum Loading Power | ? 1.6 watt | Operating Temperature | 0? ~ + 50? | Designated link | 10MO input impedance DMM | Meter output instructions | X 1000, 1V?1000V | 10V?10KV | Remark | The meter which is selected to use should has 10Mohm input impedance besides the accuracy should between ±0.5%, otherwise it will seriously affect attenuation ratio. |
|
