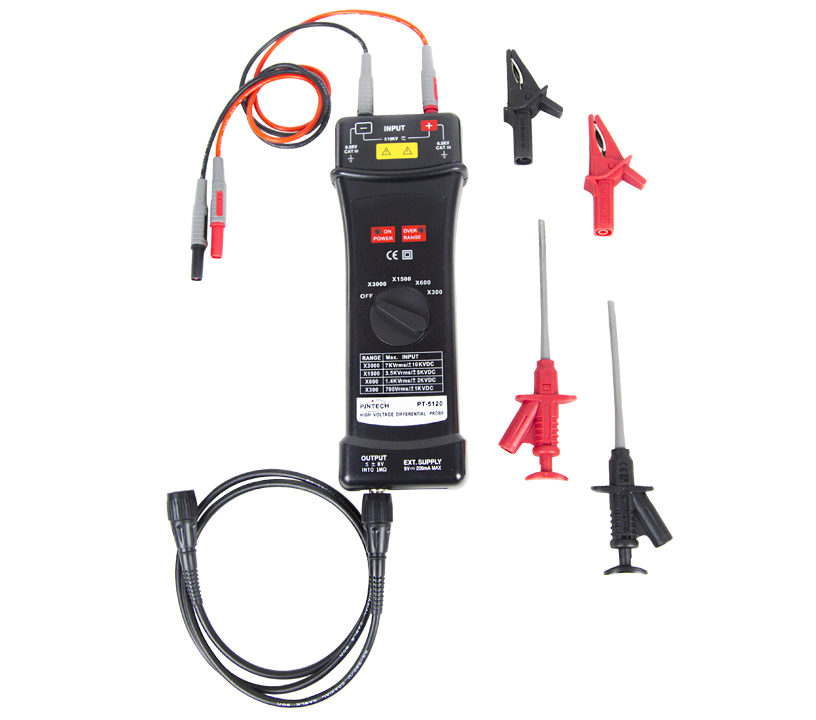

Pintech PT-5120 (20KVp-p,20MHz) differential probe
|
PT-5120 (20KVp-p,20MHz)
4 attenuation ratio : X300, X600, X1500, X3000
Max. Measuring voltage : 20KVp-p AC,10KV DC
Bandwidth : 20MHz
High working voltage and high operating frequency
|
Pintech PT-5120 Specification
Model | PT-5120 | Bandwidth (50Oload) | 20MHz | Accuracy | ±2% ( Heat the machine for twenty minutes ) | Switchable | X300,X600,X1500,X3000 | Max. Operating Voltage(DC+AC peak to peak) | When X300, =2000V When X600, =4000VWhen X1500, =10000V When X3000, =20000V | Max. input differential-mode voltage | 20kV(DC+AC peak to peak) | CMRR | 60Hz:>20000:1 | 100Hz:>2000:1 | 1MHz:>600:1 | Noise | =2mVrms(50Oload) | Input impedance | 100MO//1.25PF(Between both ends)50MO//2.3PF(Single end to ground impedance) | Power source | 9V(AC Adaptor) | power consumption | 9V/35mA | contour dimension | 235mm(L)X85mm(W)X35mm(H) | Weight | 290g |
|
|
