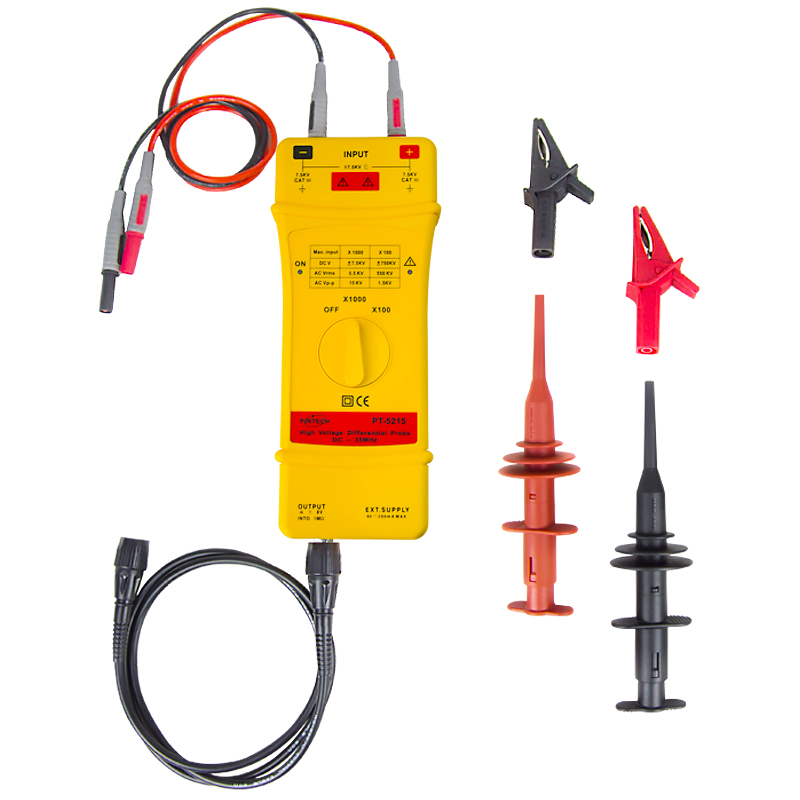

Pintech PT-5215 (35MHz,15KV) differential probe
|
PT-5215 (15KVp-p,35MHz)
Max. Measuring voltage : 15KVp-p AC, 7.5KV DC
Bandwidth : 35MHz
Attenuation ratio:X100 X1000
Compatible with any oscilloscope
|
Pintech PT-5215 Specification
Model:PT-5215 | Differential voltage DC+AC (Vp-p) | 15KV | Bandwidth (50O load -3dB) | 35MHz | Max. Measuring voltage( DC+AC(Vp-p)) | 15KV | Input voltage AC/RMS | 5.5KV | Attenuation ratio(Switchable) | 2(×100, ×1000) | Input impedance (Between Input) | 50MO // 1.3PF | Input impedance R//C | 25MO // 2.6PF | (CMRR) | 60Hz>10000:1 | 100Hz>1000:1 | Noise (Into 50O Load) | ?1m Vrms | Accuracy | ?±2% | Max. voltage | ?±8V | Output impedance | 50O | Over protection | Any Range ,Input Voltage Exceed the Max.Voltage 90% | Power supply range | DC 6~12 V | Power supply | External 9V DC Adaptor | Accessories | BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220) |
|
|
