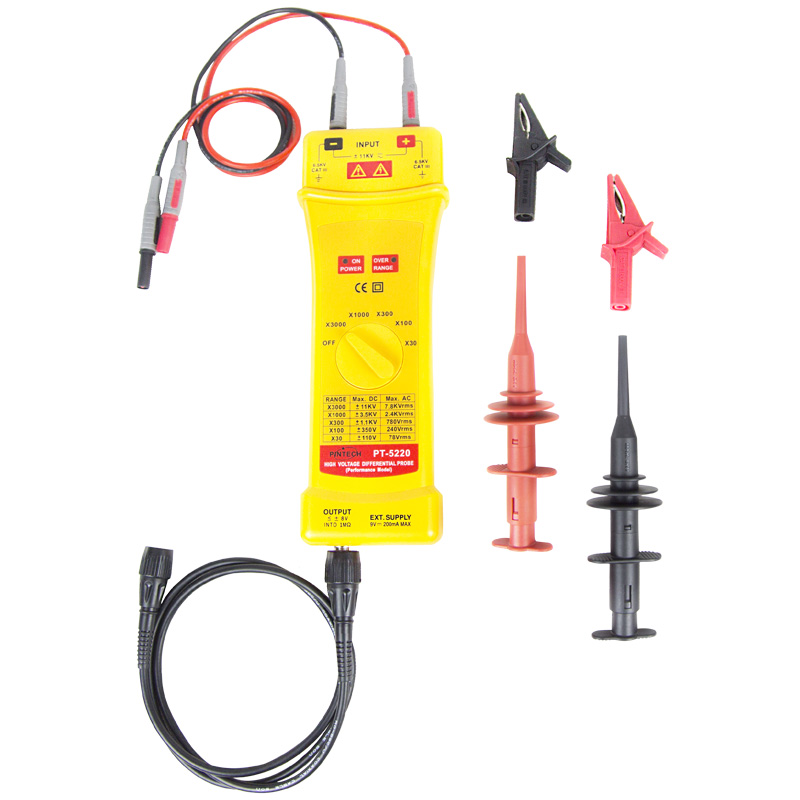

Pintech PT-5220 (22KVp-p,120MHz) differential probe
|
PT-5220 high voltage differential probe
Range : 30mV ~ 22KV,Max. 11KV DC,22KVp-p AC
Bandwidth : 120MHz
Attenuation ratio : × 30,× 100,× 300,× 1000,× 3000
Input Impedance (Between Input) : 100MO // 1PF
|
Pintech PT-5220 Specification
PT-5220 FUNCTION | Differential Voltage(Vp-p) | 22KV | Bandwidth (50O load -3dB) | 120MHz(×100 ×300 ×1000 ×3000)60MHz(×30) | Common Mode Voltage(Vp-p) | 22KV | Common Mode Voltage AC/RMS | 7.8KV | Range(Switchable) | 5(×30, ×100, ×300×,1000×,3000) | Input Impedance (Between Input) | 100MO // 1PF | Each Input R//C | 50MO // 2PF | Common Mode Rejection Ratio(CMRR) | 60Hz>10000:1 | 100Hz>1000:1 | 1MHz>300:1 | Noise(Into 50O Load) | ?1m Vrms | Accuracy | ?±2% | Maximum Output Voltage | ?±5V | Output Impedance | 50O | Input Over Range Indicate | Any range , Input Voltage Exceed the Max. Voltage 90% | Power Auto Regulation System | DC 6~12 V | Power Source | External DC 9V/300mA | Accessories | BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220) |
|
|
