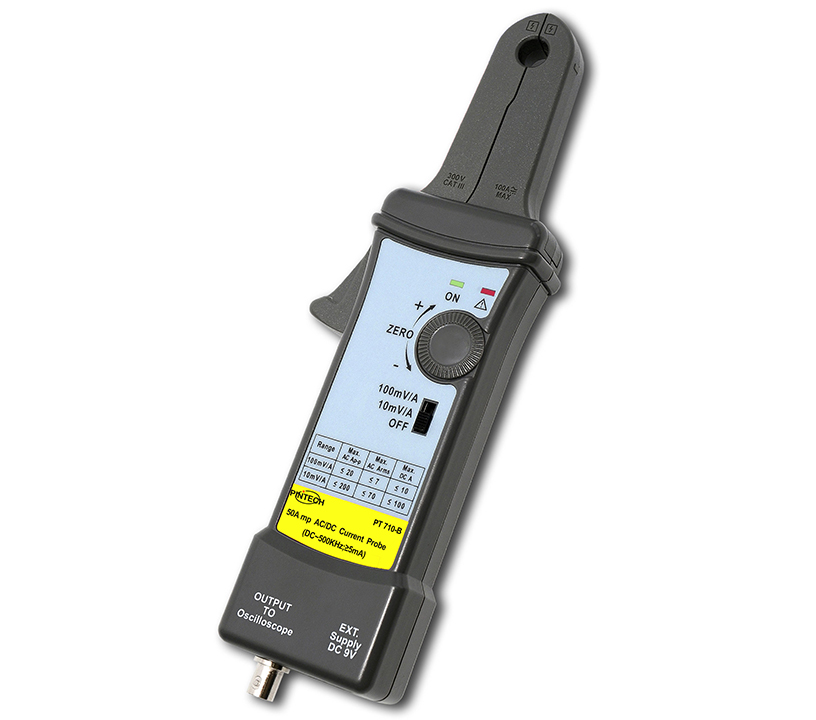

Pintech PT710-B (500KHz,50A) Current Probe
|
PT710-B (500KHz,50A) Current Probe
Short Description : 500KHZ,30mA-50A
Including MT-246N(BNC to banana interface) ,use for DMM measuring.
|
Pintech PT710-B Specification
MODEL | PT710-B | Feature | 500KHz,=5mA, Low noise type | Max.DC AC Current | ±50A DC | Max.DC AC Peak | 100A P-P | Max.DC AC RMS | 35A RMS | Range Selection Division | 2 Range 20mV/A;200mV | Max. Test Wire | =11F | Max. Sensitivity | 5mA | Bandwidth (-3dB) | DC~500KHz | Rise time | 0.7µs | DC Accuracy(Typical) | ±3%:30mA~5A peak at 200mV/A±4%:300mA~20A peak at 20mV/A±15%:20A~50A peak | Max. Working voltageMax. Floating voltage | 300V CAT III600V CAT II |
|
|
